Communicating data effectively with data visualizations: Part 38 (Replicating the LA Times COVID-19 tracker)

INTRODUCTION

Recently, the staff at the Los Angeles Times (LA Times) provided a COVID-19 tracker on their website. This is an impressive set of data visualizations of COVID-19 cumulative cases, new cases, vaccinations, and deaths. I was particularly struck by the “New cases by day” figure which includes a bar chart overlaid with a 7-day moving average line chart. The visualization effectively used the moving average to adjust for the spikes in new COVID-19 cases but maintained the spikes on a daily basis. None of the data are lost and illustrates the spikes in new COVID-19 cases while adjusting for the moving average. The color schemes were also optimal where the daily new cases used a softer color, but the moving average line used a darker color highlighting its importance in the figure.

I wanted to write an article on how to replicate this figure using Excel.

Source: Los Angeles Times, “Tracking the coronavirus in California,” url: https://www.latimes.com/projects/california-coronavirus-cases-tracking-outbreak/ [Accessed on June 24, 2021] * This is for educational purposes only.

DATA SOURCE

Data used in this article can be found on the LA Times GitHub site. I used the “latimes-county-totals.csv” data (link to the raw data). I also made the data available with the final figure on the following Dropbox location.



TUTORIAL

Step 1. Download and visually inspect the data.

After you’ve downloaded the data, take a moment to inspect them. The columns that are used in this tutorial are “date” and “new_confirmed_cases.” But you can use the other columns to replicate other parts of the LA Times COVID-19 tracker.

Step 2. Insert a bar chart and select the appropriate data.

Insert a clustered column chart using the Insert tab on the Excel ribbon. When selecting the data, make sure that you select the “new_confirmed_cases” (other data are available, but the new cases are what we are replicating in this exercise).

The default bar chart does a pretty good job of replicating the LA Times figure.

However, we’ll have to do a few edits to the axes to match the LA Times figure.



Step 3. Modify the axes.

Let’s focus on the Y-axis first. Right-click on the Y-axis and select “Format Axis…” In the Axis Options panel, change the Minimum value to 0 and the Major value to 20000. This will match the settings in the target figure. (Note: There are negative values in the data, but these are very small numbers and assumed to be ignorable.) Next, in the Number options, change Category to “Number” and the value in the “Decimal places” to 0. Make sure that you check the box next to “Use 1000 Separator (,)” to replicate the same format in the target figure.

For the X-axis, right-click on the bottom axis and select “Format Axis…”This will open the Axis Options panel where you can make several adjustments to the X-axis. First, we want to change the X-axis display values from dates to months. Change the Number Category field to “Custom” then change the Format Code to “mmm”; make sure to click on “Add” for the changes to take effect. Next, go to the Axis Type area and change the Minimum to “02/01/2020” since we want our timeline to begin on Feb of 2020. Then change the Major value to 4 to match the monthly interval of the target figure. The X-axis should be thicker with tick marks on the outside. To modify these, navigate to the Tick Marks option and change Major type to “Outside” and then click on the Paint Bucket (Fill & Line) option; increase the Width to 1.5. These should match the target figure’s X-axis format.

Step 4. Add the 7-day moving average.

Excel has a Data Analysis tool that will automatically estimate the 7-day average. I’ve written a previous tutorial that describes how to use this tool. I’ll briefly review how to estimate a 7-day moving average.

In the Data tab, click on the Data Analysis tool (instructions on how to install the Data Analysis tool is here). This will open the Data Analysis Tools box. Select “Moving Average” from the tools kit and enter the appropriate values in the options box. For the Input Range, select all the values from “new_confirmed_cases” column. Enter a value of “7” in the Interval field; this will automatically calculated the 7-day moving average. In the Output Range, select a single cell where you want to moving average to be pasted after it is calculated. I chose to use the next available cell on the dataset ($F$2).

Step 5. Add the 7-day moving average to the chart.

To include the moving average data to the current daily new cases bar chart, right-click on the chart and select “Select Data.” This will open a box where you can add new data. Select “Add” which will open the “Edit Series” box. Updates the Series name with the name of the column (“moving_avg”). For the Interval field, change this to “7” for the 7-day moving average. Then in the Series values, select the 7-day moving average data.

By default, Excel will generate a bar chart for the 7-day moving average. However, we want a link chart. We can change this by right-clicking on the bars of the chart and selecting “Change Series Chart Type…” This will open a box that will allow us to select the type of chart for each data. For the “moving_avg” data, change the Chart Type to “Line.” This will create a line chart for the 7-day moving average which will be overlaid over the daily new cases.

Step 6. Modifying the chart format.

To closely match the chart to the one presented in the LA Times, I made the following adjustments. Your mileage may vary depending on the library of fonts available. I tried to select fonts that most Excel users will have access to.

I changed the Y-axis font to Adabi script. The X-axis font was changed to Arial Nova.

The width of the horizontal gridlines was increased to 1.5. The color of the daily new cases bar chart was changed to a light blue using a hex code of #8DC6DF. The color of the 7-day moving average was changed to a dark blue using a hex code of #2B869B; additionally, the width was increased to 2.0.

Step 7. Comparison between LA Times and user-generated charts.

Once the modifications have been made, compare the charts.

CONCLUSIONS

Using data from the LA Times, we can replicate the data visuals on their COVID-19 tracker website. This allows users to verify the data that are presented on a public site. Additionally, it allows us to generate our own data visualizations that could inform policy and education the public on the rate of new cases in California.



REFERENCES

Data was based on the LA Times (link), which was accessed on 24 June 2021.

Excel file used for this exercise can be download from the following Dropbox folder.



ACKNOWLEDGEMENT

The data visual used in this exercise was based on the work of the staffers at the LA Times. They deserve all the credit and acknowledgement for developing these stunning visuals.

Communicating data effectively with data visualizations: Part 36 (Scatter plots and Moving Averages for COVID-19 vaccination)

INTRODUCTION

As of 27 April 2021, the Centers for Disease Control and Prevention (CDC) reported that approximately 42.7% of the U.S. population have received at least one dose of the coronavirus (COVID-19) vaccine and 29.1% are fully vaccinated.1 Moreover, a total of over 200 million doses have been administered. Despite the effectiveness of the availability of COVID-19 vaccines, there are some people who have decided to not receive the vaccine. The Economist published a data visualization that summarized the results of weekly surveys that asked respondents, “When a covid-19 vaccine becomes available to you, will you get vaccinated?” This figure shows that approximately 60% of the population will get or already have received the COVID-19 vaccine. However, a little over 20% stated that they will not get the vaccine and nearly 20% are unsure. Using data from The Economist, we can use Microsoft Excel to recreate the figure below:

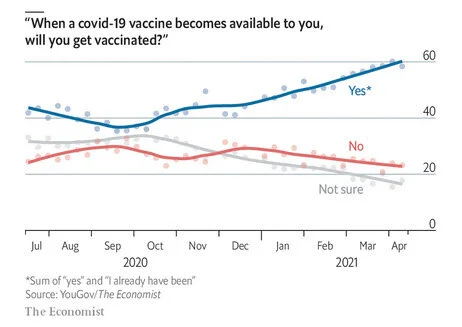

* Source: The Economist – “When a covid-19 vaccine becomes available to you, will you get vaccinated?” (link). This is for educational purposes only.

DATA

The data to recreate the figure can be found at The Economist YouGov data site (link). I also abstracted the data and saved them onto an Excel file, which is located here. Using the data from The Economist, we will create a scatter plot and use the 2-day moving average to re-create the figure above.

Creating the Scatter Plot with Moving Average

Step 1. Inspect the data

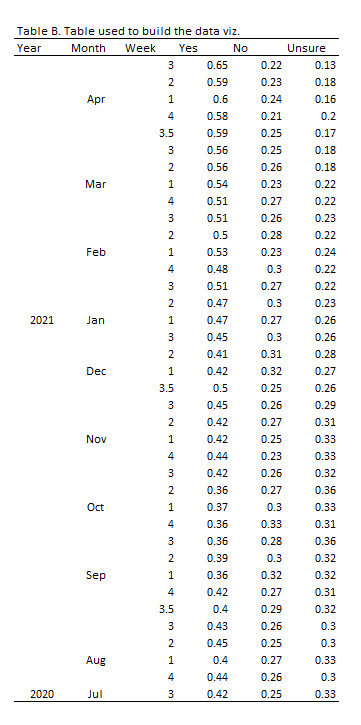

The data include the percentage of respondents who answered “Yes” (includes both Yes and those who received the vaccine), “No”, and “Not Sure”. The timeline is composed of the calendar year, month, and the week the data was collected. Notice that for some of the months, there were 5 weeks. I altered the scale so that the data would fit into a 4-week bin. Hence, you’ll notice that the weekly scale is 1, 2, 3, 3.5, and 4.

Step 2. Highlight the data and insert a line chart

Step 3. Modify the data source

Once the line chart is inserted onto the workspace, you’ll notice that the scatter plot hasn’t been created. A few more steps are required. Right-click on the chart and click on “Select Data” to open the window that will allow you to make modifications to the data source.

Click on the “Edit” option and select the rows containing the Year and Month on the data sheet. This will create the X-axis labels for our data visualization. You should notice that the X-axis labels have changed to reflect the Year and Month.

To further modify the data source, right-click on the chart again and click on “Select Data….” At the data source window, remove “Year”, “Month”, and “Week” from the legend series to only display the percentage of respondents to the survey question. Once these have been removed, click “Ok.” This will generate a link chart with the respondents’ answers to the survey question.

Step 4. Change line chart to scatter plot

Currently, the X-axis displays the data from 2021 before 2020. We can change this by right-clicking on the X-axis and then clicking on “Format Axis.” This brings up a window where we can click on the box by “Categories in reverse order” for the X-axis to display the respondents answers in chronological order.

To change the line chart to a scatter plot, right-click on the line and select  “Format Data Series…” This will open the options to modify the data on the chart. Instead of a line chart, we want a scatter plot. To make this change, click on the paint bucket and under the line group click on “No line” to remove the line chart. Then under the Marker group, select the circle under “Type.” This will replace the line chart with a scatter plot.

Repeat this for the other lines and you should have a chart that looks like the following:

Step 5. Adjust the aesthetics and add a moving average line

The final step involves making changes to the aesthetics of the chart. You can remove the labels on the Y-axis, delete the gridlines, delete the chart title, eliminate the border of the X-axis, and then delete the legend.  You can add moving average lines for each of the scatter plots by right-clicking on the data points and selecting “Add Trendline…” Then select “Moving average” with “2” periods. Change the moving average line from a dashed line to a solid line and a higher thickness.

The final figure can be achieved by changing the colors of the scatter plots and moving average lines. You add additional labels to emulate the figure from The Economist.

CONCLUSIONS

Using data from The Economist, we recreated the figure showing how the perceptions of respondents changed regarding getting a COVID-19 vaccine from 2020 to 2021. All the data files can be downloaded from here.



REFERENCES

1. CDC. COVID Data Tracker. Centers for Disease Control and Prevention. Published March 28, 2020. Accessed April 27, 2021. https://covid.cdc.gov/covid-data-tracker

The Economist YouGov data site (link)



Communicating data effectively with data visualizations: Part 25 (Moving averages)

INTRODUCTION

As the severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) continues around the world, data visualization experts have provided stunning visuals of the pandemic’s terrifying impact on public health. Several of these include a moving average metric that smooths the curves of the pandemic’s mortality data. Common moving averages presented by several of these visualizations include the 5-day average daily deaths and the 7-day average daily deaths. Information Is Beautiful presents mortality on a 7-day moving average while  International SOS presents the average daily deaths as 5-day moving averages.

Figure 1. 7-day moving average daily deaths by Information Is Beautiful (Last updated on 19 May 2020).

MOTIVATING EXAMPLE

In this article, we will replicate the 5-day and 7-day (moving) average daily deaths due to SARS-CoV-2 using data from the European Centre for Disease Control and Prevention (ECDC)1 or from the Our World in Data’s GitHub site.2 Due to the changing nature of SARS-CoV-2 data, this exercise will have used data that would ultimately be updated in the future. Please visit the ECDC or the Our World in Data site to download the most recent SARS-CoV-2 data.

We will download data from the Our World in Data’s GitHub site and then use Excel to recreate this plot for the United States (US).

Step 1. Download data from the OWID Covid-19 GitHub site

You can download the raw data for all the countries from the OWID’s site here. However, you can also download the cleaned data for this article (parsed for the United States) from my Dropbox folder here (I cleaned the data and prepared them for use in Excel).

The data has the following format:

Figure 2.png

We are interested in the new_deaths column, which is the number of new confirmed deaths by day. The moving average will estimate the average daily deaths across either 5-day or 7-day time periods.

Step 2. Add columns for the 5-day and 7-day moving average.

When you load the data into Excel, you will need to create two columns; one for the 5-day average daily death and another for the 7-day average daily deaths. I used MAD_5 for 5-day moving average daily deaths and MAD_7 for 7-day moving average daily deaths.

Figure 3.png

Step 3. Activate the Analysis ToolPak

Excel has a tool that will perform simple analysis; however, you may need to activate this if it is not on the ribbon.

Once the Options selection has been selected, you can navigate to the Add-in option and open the window to select the Analysis ToolPak. You only need the Analysis ToolPak for this exercise, but it is a good idea to explore the other tools available (e.g., Solver).

Step 4. Estimate the moving average

Once the Analysis ToolPak is activated, return to your main worksheet with the new data columns. Start by selecting the cell where you want the first moving average value to be calculated. Then select the Data Analysis add-in. This will open a window with different Analysis Tools. Select the Moving Average tool.

Once you click “Ok,” you will be asked for several elements to calculate the moving average. You will need to select the Input Range, the number of days needed for calculating the moving average, and the Output Range. After selecting the appropriate information, you can click “Ok” to generate the moving average. Do these steps for the 5-Day and 7-Day moving average daily deaths.

Step 5. Generate the line graph

Now that the average daily deaths are calculated for 5-day and 7-day moving averages, you can generate a line graph that resembles Figure 1.

Insert a line graph onto the Excel worksheet. Right click on any empty area of the line graph; this will open up the edit options.

You can make edits to the figure like entering the data to create the line graph. The Series values is the set of numbers that you calculated for the 5-day average daily deaths.

Once you have selected the data for the Series values, you can edit the x-axis label. Currently, the x-axis defaults to a sequence of 1, 2, 3, …, n. You want this to reflect the dates which are on the B column. Click on Edit and select the dates on the B column to properly relabel the x-axis.

This will generate the first line graph with the 5-day average daily deaths visualization.

Step 6. Finalize the figure

After adding the 5-day average daily deaths, go ahead and repeat these steps for the 7-day average daily deaths. Using Excel’s format feature, you can make changes to the figure’s size, height, and colors. To replicate Figure 1, you will need to change the y-axis to a logarithmic scale.

After changing the scale on the y-axis and adding the 7-day average daily deaths, you should get a figure similar to the one below.

You can also present this without the logarithmic scale.

CONCLUSIONS

The moving average daily deaths smooths the line plots and provide a trend that is easy to understand and interpret. The major difference between these moving average plots and the mortality curves (see previous blog) is the ability to see the decline in daily deaths. The average daily deaths curve allows us to see the decline in the amount of deaths on a moving average. Mortality curves don’t do that since they are based on the total amount of deaths. Despite the differences in plots, both the moving average daily deaths and mortality curves provide critical visual information about the current SARS-CoV-2 trends.

You can download the data and complete exercise here.

REFERENCES

  1. European Centre for Disease Control and Prevention. Download today’s data on the geographic distribution of COVID-19 cases worldwide. European Centre for Disease Prevention and Control. Published April 18, 2020. Accessed May 19, 2020. https://www.ecdc.europa.eu/en/publications-data/download-todays-data-geographic-distribution-covid-19-cases-worldwide

  2. Our World in Data. GitHub: Owid/Covid-19-Data. Our World in Data; 2020. Accessed May 19, 2020. https://github.com/owid/covid-19-data
