Communicating data effectively with data visualizations: Part 38 (Replicating the LA Times COVID-19 tracker)

INTRODUCTION

Recently, the staff at the Los Angeles Times (LA Times) provided a COVID-19 tracker on their website. This is an impressive set of data visualizations of COVID-19 cumulative cases, new cases, vaccinations, and deaths. I was particularly struck by the “New cases by day” figure which includes a bar chart overlaid with a 7-day moving average line chart. The visualization effectively used the moving average to adjust for the spikes in new COVID-19 cases but maintained the spikes on a daily basis. None of the data are lost and illustrates the spikes in new COVID-19 cases while adjusting for the moving average. The color schemes were also optimal where the daily new cases used a softer color, but the moving average line used a darker color highlighting its importance in the figure.

I wanted to write an article on how to replicate this figure using Excel.

Source: Los Angeles Times, “Tracking the coronavirus in California,” url: https://www.latimes.com/projects/california-coronavirus-cases-tracking-outbreak/ [Accessed on June 24, 2021] * This is for educational purposes only.

DATA SOURCE

Data used in this article can be found on the LA Times GitHub site. I used the “latimes-county-totals.csv” data (link to the raw data). I also made the data available with the final figure on the following Dropbox location.



TUTORIAL

Step 1. Download and visually inspect the data.

After you’ve downloaded the data, take a moment to inspect them. The columns that are used in this tutorial are “date” and “new_confirmed_cases.” But you can use the other columns to replicate other parts of the LA Times COVID-19 tracker.

Step 2. Insert a bar chart and select the appropriate data.

Insert a clustered column chart using the Insert tab on the Excel ribbon. When selecting the data, make sure that you select the “new_confirmed_cases” (other data are available, but the new cases are what we are replicating in this exercise).

The default bar chart does a pretty good job of replicating the LA Times figure.

However, we’ll have to do a few edits to the axes to match the LA Times figure.



Step 3. Modify the axes.

Let’s focus on the Y-axis first. Right-click on the Y-axis and select “Format Axis…” In the Axis Options panel, change the Minimum value to 0 and the Major value to 20000. This will match the settings in the target figure. (Note: There are negative values in the data, but these are very small numbers and assumed to be ignorable.) Next, in the Number options, change Category to “Number” and the value in the “Decimal places” to 0. Make sure that you check the box next to “Use 1000 Separator (,)” to replicate the same format in the target figure.

For the X-axis, right-click on the bottom axis and select “Format Axis…”This will open the Axis Options panel where you can make several adjustments to the X-axis. First, we want to change the X-axis display values from dates to months. Change the Number Category field to “Custom” then change the Format Code to “mmm”; make sure to click on “Add” for the changes to take effect. Next, go to the Axis Type area and change the Minimum to “02/01/2020” since we want our timeline to begin on Feb of 2020. Then change the Major value to 4 to match the monthly interval of the target figure. The X-axis should be thicker with tick marks on the outside. To modify these, navigate to the Tick Marks option and change Major type to “Outside” and then click on the Paint Bucket (Fill & Line) option; increase the Width to 1.5. These should match the target figure’s X-axis format.

Step 4. Add the 7-day moving average.

Excel has a Data Analysis tool that will automatically estimate the 7-day average. I’ve written a previous tutorial that describes how to use this tool. I’ll briefly review how to estimate a 7-day moving average.

In the Data tab, click on the Data Analysis tool (instructions on how to install the Data Analysis tool is here). This will open the Data Analysis Tools box. Select “Moving Average” from the tools kit and enter the appropriate values in the options box. For the Input Range, select all the values from “new_confirmed_cases” column. Enter a value of “7” in the Interval field; this will automatically calculated the 7-day moving average. In the Output Range, select a single cell where you want to moving average to be pasted after it is calculated. I chose to use the next available cell on the dataset ($F$2).

Step 5. Add the 7-day moving average to the chart.

To include the moving average data to the current daily new cases bar chart, right-click on the chart and select “Select Data.” This will open a box where you can add new data. Select “Add” which will open the “Edit Series” box. Updates the Series name with the name of the column (“moving_avg”). For the Interval field, change this to “7” for the 7-day moving average. Then in the Series values, select the 7-day moving average data.

By default, Excel will generate a bar chart for the 7-day moving average. However, we want a link chart. We can change this by right-clicking on the bars of the chart and selecting “Change Series Chart Type…” This will open a box that will allow us to select the type of chart for each data. For the “moving_avg” data, change the Chart Type to “Line.” This will create a line chart for the 7-day moving average which will be overlaid over the daily new cases.

Step 6. Modifying the chart format.

To closely match the chart to the one presented in the LA Times, I made the following adjustments. Your mileage may vary depending on the library of fonts available. I tried to select fonts that most Excel users will have access to.

I changed the Y-axis font to Adabi script. The X-axis font was changed to Arial Nova.

The width of the horizontal gridlines was increased to 1.5. The color of the daily new cases bar chart was changed to a light blue using a hex code of #8DC6DF. The color of the 7-day moving average was changed to a dark blue using a hex code of #2B869B; additionally, the width was increased to 2.0.

Step 7. Comparison between LA Times and user-generated charts.

Once the modifications have been made, compare the charts.

CONCLUSIONS

Using data from the LA Times, we can replicate the data visuals on their COVID-19 tracker website. This allows users to verify the data that are presented on a public site. Additionally, it allows us to generate our own data visualizations that could inform policy and education the public on the rate of new cases in California.



REFERENCES

Data was based on the LA Times (link), which was accessed on 24 June 2021.

Excel file used for this exercise can be download from the following Dropbox folder.



ACKNOWLEDGEMENT

The data visual used in this exercise was based on the work of the staffers at the LA Times. They deserve all the credit and acknowledgement for developing these stunning visuals.

Communicating data effectively with data visualizations: Part 34 (Progress bars in Excel)

INTRODUCTION

With the introduction of the COVID-19 vaccines, states have monitored their vaccination progress. Current progress of each state’s vaccination rates are available at USAFacts.org. California, which has been experiencing some of the highest COVID-19 related rates and deaths, has approximately 81.2% of its current allocation of COVID-19 vaccines. Here is a screen capture of California’s progress as of 22 February 2021:

This visualization contains several progress bars showcasing the COVID-19 vaccination progress in California. We will re-create this in Excel using the data presented in this visualization.



Step 1. Enter data into Excel.

Using the visualization, we can enter the data into Excel. The data should be arranged in the following manner as reflected in Table 1:

Step 2. Select the data and insert a clustered bar chart.

Figure 3.jpg

The default chart is automatically generated by Excel. However, we want to have the labels for the axis to denote the legend. To do that we need to right-click on the chart area and click on “Select Data…” This will bring up a window where you will need to click on “Switch Row/Column” to change the horizontal axis labels.

Figure 4.jpg

Step 3. Modify chart to add data labels.

Right-click on the chart area and click on “Select the data…” This will bring up a window that will allow you to make changes to the data structure. We will unselect the “Goal” and “Current progress” data. This will only leave the Goal (%) and % bars. Next, right-click the top bar and click on “Add data labels.”

Figure 5.jpg

Step 4. Overlap the two bars.

Next, we want to overall the two bars so that we can show the progress of vaccinations in California. Right-click on one of the bars and click on “Format Data Series…” Change the series overlap to 100%. This will cause the two bars to overlap, which will look like a progress bar. Since we only left the data label for the top bar, we can see distinctly the vaccination progress in California.

Figure 6.jpg

Step 5. Modify the aesthetics.

The progress chart is modified using the Abadi font and changed the patterns and colors of the bars. I also added the title “COVID-19 vaccination progress, California.

Figure 7.jpg

Step 6. Add some text.

Then we can add some text to emulate the visualization from USAFacts.org. Change the order of the data so that it reflects the one on the USAFacts.org website.

Figure 8.jpg

Conclusions

Using the overlap feature of Excel will allow us to make progress charts. The example from California showcases how this visualization can effectively show the current vaccination progress. These types of visualizations will help decision makers monitor progress and make any changes when necessary. Files for this exercise can be downloaded here.



References

Data from USAFacts.org.

Communicating data effectively with data visualizations: Part 33 (Bar charts with secondary axis)

INTRODUCTION

Secondary axis allows us to plot two pieces of data with large differences in their scale. For instance, plotting the number of new COVID cases, which number in the hundreds of thousands, will outweigh the number of employees who lose their jobs, which number in the tens of thousands. There is an order of magnitude that makes it difficult to see how these two metrics are presented side-by-side on a single figure. However, we can take advantage of the secondary vertical axis to present both pieces of data that will be visually intuitive to interpret, while preserving the differences in their scale. One problem with this method is how Excel executes this. Instead of maintaining the bar or column chart, Excel will overlay both bars (or columns). This is illustrated in Figure 1.



Figure 1. Excel overlays the two bars in the figure when using the secondary axis.

To address this issue, we will use a method described by Steve True on his Excel Dashboard Templates Website.



MOTIVATING EXAMPLE

We will use data from the California’s Employment Development Department to visualize the number of employees who lost their jobs during the COVID-19 pandemic and compare these trends to the number of new COVID-19 cases in California. Data on the number of COVDI-19 cases in California came from the California Data Portal. You can also download the Excel exercise file from the following shared Dropbox location.



Step 1. Selecting the data.

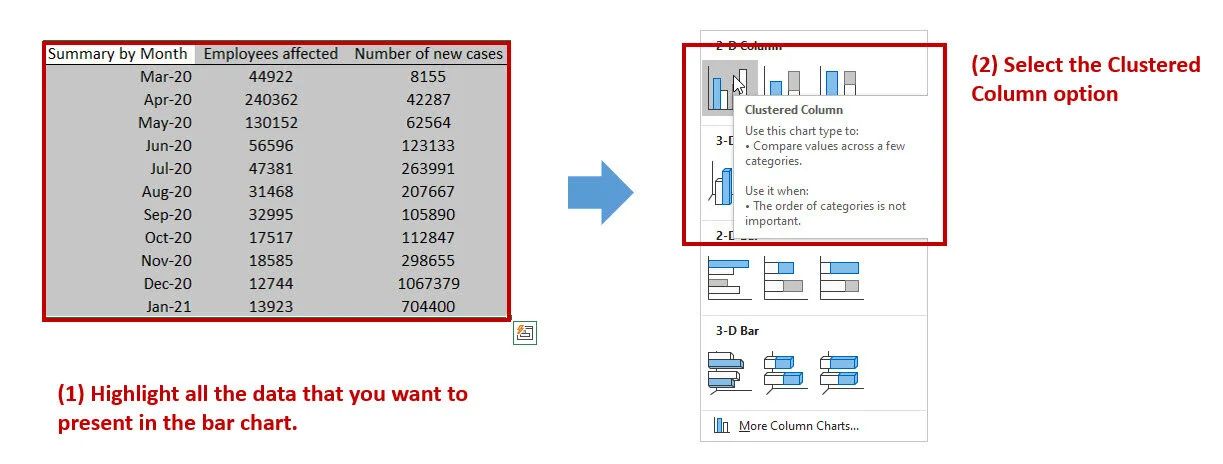

First, inspect the data. There are three columns of data the contain the month, number of employees affected, and the number of new COVID-19 cases. Next select the data and insert a “Clustered Column” chart.

Excel will automatically generate a figure where the dates are on the X-axis and the values for the metrics are on the Primary Y-axis.

Notice that the Number of new cases is exponentially larger than the number of employees who lost their jobs during the pandemic. It is difficult to see how the pandemic impacts the number of employees who’ve lost their jobs. To address this, we’ll use the secondary axis for the Number of new cases.

Step 2. Select the secondary axis.

To select the secondary axis, right-click on one of the orange bars that denotes the Number of new cases. This will open a window where you can select “Format Data Series…” Once you’ve done this, select the “Secondary Axis.” This will change your current bar chart into a chart with two axes.

The problem with this updated chart is the way Excel overlays the bars. Here is an illustration of how Excel does this. By changing the gap width, we reveal that the bars are actually over one another and not stacked.

Step 3. Fixing this problem.

The solution to this issue is to add gaps between the bars. Add two new columns between the Number of Employees affected and the Number of new cases; label these as “gap1” and “gap2.”

Now, select all the data and insert a bar chart. You should get the following chart.

Right-click on the yellow bar to open the Format Data Series option. In the Format Data Series window, use the “Series Options” drop-down button to select the data element we want to edit. The first data element is “gap2” and the second data element is “gap1.” We want to assign “gap2” to the Secondary Axis and “gap1” to the Primary Axis. Make sure that you change the “Gap Width” to 25% for both the “gap1” and “gap2” data elements. Keep the “Series Overlap” at 0% for both data elements.

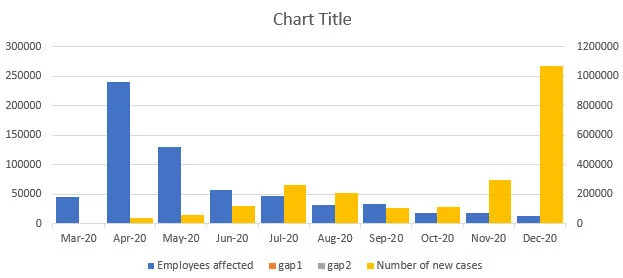

Now, your bar chart should have the bars for the Number of Employees affected and the Number of new cases side-by-side (rather than overlaid) and using both axes.

We could improve this bar chart by editing the legend to remove the “gap1” and “gap2” labels, change the color of the bars, modify the fonts, add axis labels, and add a chart title.

CONCLUSIONS

It is possible to use Excel to create bar charts with two vertical axes. Although Excel doesn’t do this intuitively, we can use the extra columns denoted by “gap1” and “gap2” to generate the space needed to have the bars side-by-side.

REFERENCES

I ran into this problem when I wanted to use two different scales of metrics on a recent project, and I was perplexed as how Excel doesn’t intuitively create the bar chart that I needed. Fortunately, I found Steve True’s Excel Dashboard Templates website where he details how to solve this issue. I highly recommend visiting his site as he has wealth of resources on how to use Excel efficiently.

California COVID-19 data are located at the California Open Data Portal

Data on California layoffs are located at California Employment Development Department
